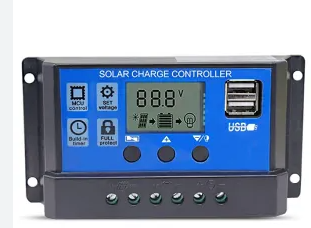

SOLAR CHARGE CONTROLLER

F CFA 0 F CFA 0

This  charge controller is a device designed to manage battery charging in solar systems. It supports charging currents of up to 20 amperes and operates with nominal voltages of 12 or 24 volts DC. This controller is equipped with protection mechanisms against overcharging and deep discharges, as well as voltage regulation to maintain the battery in an optimal state. It offers high efficiency, a display to monitor charging parameters, and protection against polarity reversals. Compact and robust, it is suitable for various solar applications.

SKU : MPPT-1 En stock

Technical data:

  • Battery voltage: 12V / 24V Auto
  • Charging current: 20A
  • Discharge current: 10A
  • Max solar panel input voltage: 25V (12V battery), 50V (24V battery)
  • 12V battery preset: 14.4V (sealed) 14.2V (frozen) 14.6V (flooded)
  • 24V battery presets: 28.8V (sealed) 28.4V (gel) 29.2V (flooded)
  • Float charge: 13.7V default, adjustable
  • Discharge cut-off: 10.7V default, adjustable
  • Discharge disconnect: 12.6V default, adjustable
  • Reconnect charge: 13V
  • Dual USB port 5V / 3A
  • Power consumption at no load: <10mA
  • Operating temperature: -35°C ~ +60°C
